Description

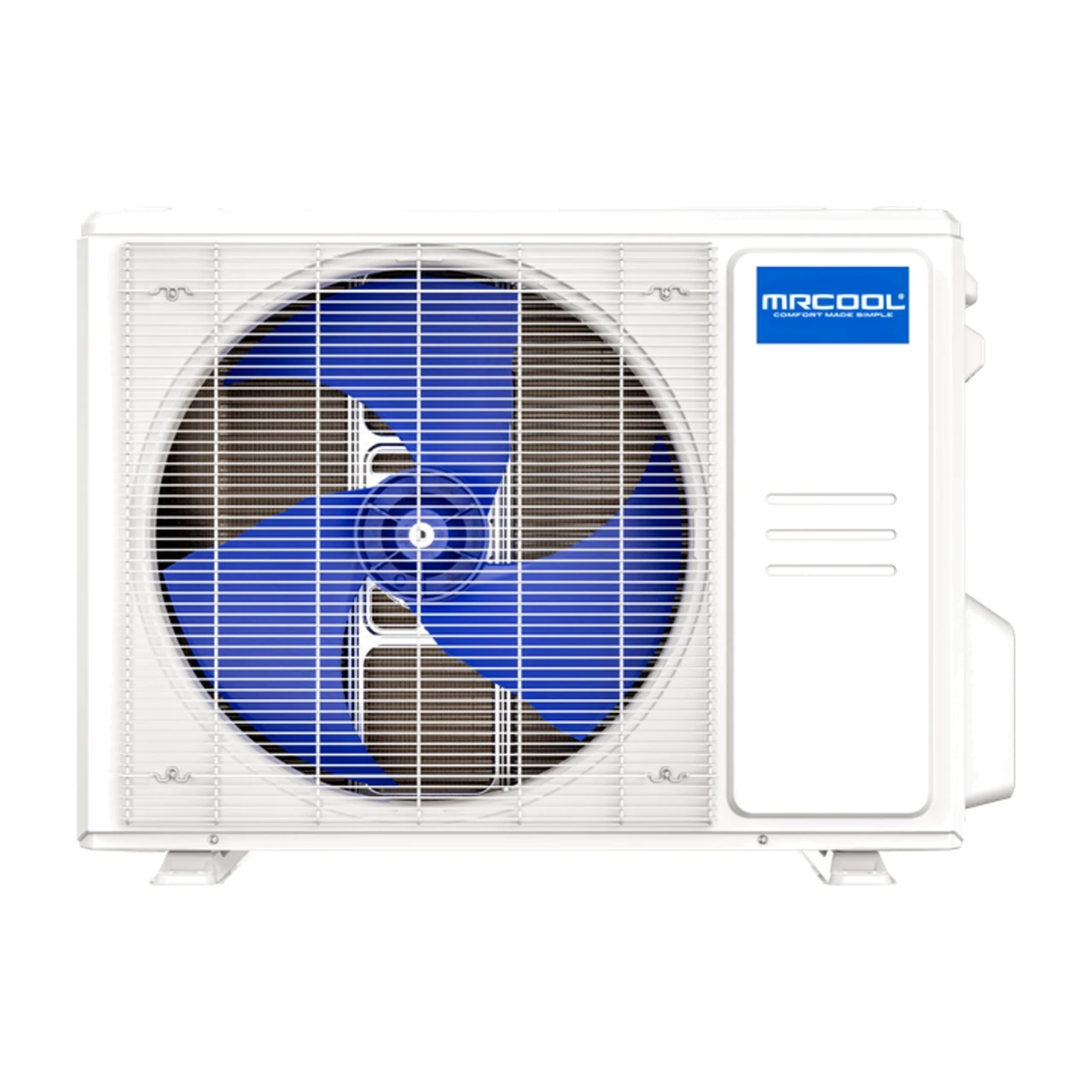

The MRCOOL Advantage 5th Gen A-12-HP-C-115D-O is the 12,000 BTU (1-ton) outdoor heat pump condenser for a single-zone ductless mini split, rated up to 21.2 SEER2 and 8.7 HSPF2 on low-GWP R-454B refrigerant. A DC inverter rotary compressor varies its speed to hold temperature quietly and efficiently in both cooling and heating.
If you’re ready for a real advantage when it comes to comfort, we suggest getting the 5th Generation 12k BTU 115V Advantage condenser. You must have an HVAC professional install this system for you, but the simple installation of a ductless system ensures a fast and inexpensive process. This system, which attains up to a 21.2 SEER2 rating as well as an HSPF2 4 rating of 8.7, makes the simple yet effective switch from R410A to R454B refrigerant.
This significantly increases the overall performance and sustainability of the system, because R454B has a GWP (global warming potential) that is around 80 percent less than the previous refrigerant. The increased efficiency of this system ensures that you won’t be paying a higher cost for better comfort as you’re decreasing your carbon footprint.
Quiet, cost effective, and dependable, if you need comfort for your space that’s up to or around 550 square feet, the 12k Advantage will do the trick. The Wi Fi module is a handy feature that makes temperature control a breeze, as it allows you to operate your system through your phone and Google Assistant or Amazon Alexa. You don’t even have to touch a button to control your comfort.
Alongside these features, the Advantage is covered by a 1 year parts warranty, 2 year compressor warranty, once you register your system. You can be sure that we’ve got your back when it comes to the comfort of your home. Take a break and enjoy the perfect temperatures and amazing value of the 5th Generation 12k BTU Advantage.
Key Features
- DC inverter compressor: Variable-speed rotary compressor ramps to the load for steady comfort and low energy use.
- R-454B refrigerant: Low-GWP A2L refrigerant.
- Efficiency: Up to 21.2 SEER2 / 10.1 EER2 / 8.7 HSPF2.
- Quiet outdoor operation: 54 dBA rated sound level.
- Long line runs: Up to 82 ft maximum line set length.
Product Specifications
| Unit Dimensions (W x D x H) | 30.12" x 11.93" x 21.85" |
|---|---|
| Unit Weight | 61.29 lb |
| Max Coverage Area | Up to 550 sq ft |
| Brand | MRCOOL |
| Model | A-12-HP-C-115D-O |
| Series | Advantage 5th Gen |
| SEER2 | 21.2 |
| EER2 | 10.1 |
| HSPF2-4 | 8.7 |
| HSPF2-5 | 6.7 |
| Tonnage | 1 |
| Cooling Capacity | 12000 BTU |
| Heating Capacity | 12000 BTU |
| Voltage | 115V |
| Phase | 1 |
| Cycle | 60Hz |
| Max Fuse Breaker | 20A |
| Min Circuit Ampacity | 19A |
| Zone Capacity | 1 |
| Refrigerant Type | R-454B |
| Refrigerant Volume | 24.34 oz |
| Decibel Rating | 54 dBA |
| Inverter | DC |
| Max Line Set Length | 82 ft |
| Liquid Line Size | 1/4 in |
| Suction Line Size | 3/8 in |
| Compressor Motor Type | Rotary |
| Overload Protection | Yes |
| UL Listed | Yes |
| Csa Listed | Yes |
| ETL Listed | Yes |
| Energy Star Certified | No |
| AHRI Certified | Yes |
| Base Parts Warranty | 1 Year |
| Base Compressor Warranty | 2 Years |
| Net Dimensions | 11.93 in D × 21.85 in H × 30.12 in W |
| Net Weight | 61.29 lbs |
Compatibility & Installation
Matched with: : Yes Works with iOS: Yes Works with Android: Yes UL Listed: Yes CSA Listed: Yes ETL Listed: Yes Energy Star Certified: No AHRI Certified: Yes Base Parts Warranty: 1 Year Base Compressor Warranty: 2 Years Has Batteries: Yes Contains Chemicals: Yes Contains Compressed Gas: Yes Propositio
- Line set: Flare connections — 1/4 in liquid × 3/8 in suction; maximum line length 82 ft. Line set not included.
- Electrical: 115V single-phase, 60 Hz.
- Professional installation: Requires installation by a licensed HVAC technician (evacuation and charge verification with gauges). R-454B is an A2L refrigerant — follow current codes.
