Description

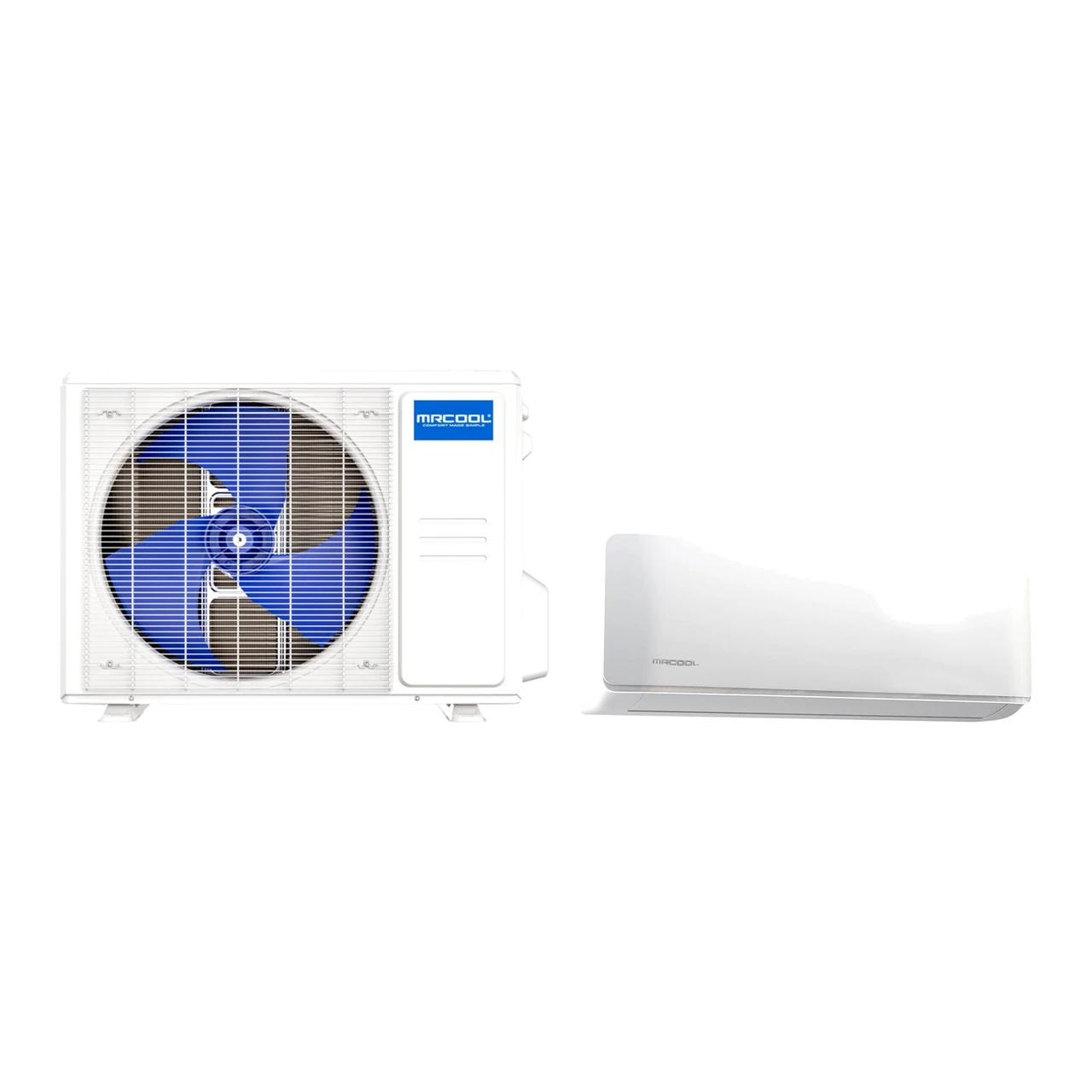

The MRCOOL Advantage 5th Gen A-12-HP-115D-O is a complete 12,000 BTU (1-ton) single-zone ductless mini split heat pump system: the A-12-HP-C-115D-O outdoor condenser and the A-12-HP-WMAH-115D-O wall-mounted indoor unit with wireless remote. AHRI rated at 21.2 SEER2, 10.1 EER2 and 8.7 HSPF2 (AHRI #216032582) on R-454B refrigerant, it heats and cools one room or zone up to 550 sq ft without ductwork.
If you’re ready for a real advantage when it comes to comfort, we suggest getting the 5th Generation 12k BTU 115V Advantage condenser. You must have an HVAC professional install this system for you, but the simple installation of a ductless system ensures a fast and inexpensive process. This system, which attains up to a 21.2 SEER2 rating as well as an HSPF2 4 rating of 8.7, makes the simple yet effective switch from R410A to R454B refrigerant.
This significantly increases the overall performance and sustainability of the system, because R454B has a GWP (global warming potential) that is around 80 percent less than the previous refrigerant. The increased efficiency of this system ensures that you won’t be paying a higher cost for better comfort as you’re decreasing your carbon footprint.
Quiet, cost effective, and dependable, if you need comfort for your space that’s up to or around 550 square feet, the 12k Advantage will do the trick. The Wi Fi module is a handy feature that makes temperature control a breeze, as it allows you to operate your system through your phone and Google Assistant or Amazon Alexa. You don’t even have to touch a button to control your comfort.
Alongside these features, the Advantage is covered by a 1 year parts warranty, 2 year compressor warranty, once you register your system. You can be sure that we’ve got your back when it comes to the comfort of your home. Take a break and enjoy the perfect temperatures and amazing value of the 5th Generation 12k BTU Advantage.
What's Included
- 1 × A-12-HP-C-115D-O — Advantage 5th Gen 12,000 BTU heat pump condenser
- 1 × A-12-HP-WMAH-115D-O — Advantage 5th Gen 12,000 BTU wall-mounted indoor unit
- 1 × wireless remote control
- 16 ft install kit (per MRCOOL; Advantage condensers ship with an install kit)
System Performance
| AHRI Reference Number | 216032582 |
|---|---|
| Cooling Capacity | 12,000 BTU/h |
| Heating Capacity (47°F) | 12,000 BTU/h |
| SEER2 | 21.2 |
| EER2 | 10.1 |
| HSPF2 (Region IV) | 8.7 |
| Refrigerant | R-454B |
| Power Supply | 115V, 1-Phase, 60 Hz |
| Max Coverage Area | Up to 550 sq ft |
Component Specifications

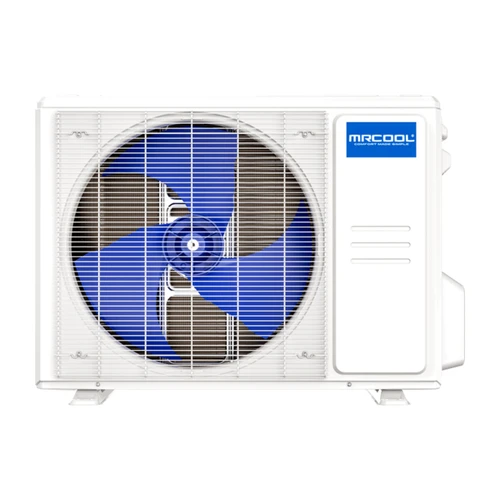

Outdoor Unit — A-12-HP-C-115D-O
| Unit Dimensions (W x D x H) | 30.12" x 11.93" x 21.85" |
|---|---|
| Unit Weight | 61.29 lb |
| Minimum Circuit Ampacity | 19 A |
| Maximum Fuse / Breaker | 20 A |
| SEER2 | 21.2 |
| EER2 | 10.1 |
| HSPF2-4 | 8.7 |
| HSPF2-5 | 6.7 |
| Tonnage | 1 |
| Cooling Capacity | 12000 BTU |
| Heating Capacity | 12000 BTU |
| Voltage | 115V |
| Phase | 1 |
| Cycle | 60Hz |
| Max Fuse Breaker | 20A |
| Min Circuit Ampacity | 19A |
| Zone Capacity | 1 |
| Refrigerant Type | R-454B |
| Refrigerant Volume | 24.34 oz |
| Decibel Rating | 54 dBA |
| Inverter | DC |
| Max Line Set Length | 82 ft |
| Liquid Line Size | 1/4 in |
| Suction Line Size | 3/8 in |
| Compressor Motor Type | Rotary |
| Overload Protection | Yes |
| UL Listed | Yes |
| Csa Listed | Yes |
| ETL Listed | Yes |
| Energy Star Certified | No |
| AHRI Certified | Yes |
| Base Parts Warranty | 1 Year |
| Base Compressor Warranty | 2 Years |
| Net Dimensions | 11.93 in D × 21.85 in H × 30.12 in W |
| Net Weight | 61.29 lbs |
Indoor Unit — A-12-HP-WMAH-115D-O
| Unit Dimensions (W x D x H) | 31.57" x 7.44" x 11.69" |
|---|---|
| Unit Weight | 19.4 lb |
| Tonnage | 1 |
| Voltage | 115V |
| Phase | 1 |
| Cycle | 60Hz |
| Max Fuse Breaker | 15A |
| Min Circuit Ampacity | 3A |
| Color | White |
| Decibel Rating | 32.5 dBA |
| Decibel Rating (Low) | 17.5 dBA |
| Decibel Rating (High) | 45 dBA |
| Number Of Speeds | 5 |
| Max Line Set Length | 82 ft |
| Liquid Line Size | 1/4 in |
| Suction Line Size | 3/8 in |
| Filter Type | Reusable |
| Overload Protection | Yes |
| Remote Control Included | Yes |
| UL Listed | Yes |
| Csa Listed | Yes |
| ETL Listed | Yes |
| AHRI Certified | Yes |
| Base Parts Warranty | 1 Year |
| Base Compressor Warranty | 2 Years |
| Net Dimensions | 7.44 in D × 11.69 in H × 31.57 in W |
| Net Weight | 19.4 lbs |
Compatibility & Installation
- Line set: Flare connections — 1/4 in liquid × 3/8 in suction; maximum line length 82 ft. Line set not included.
- Electrical: 115V single-phase, 60 Hz.
- Professional installation: Requires installation by a licensed HVAC technician (evacuation and charge verification with gauges). R-454B is an A2L refrigerant — follow current codes.
