Description
The MRCOOL Advantage 5th Gen A-24-HP-230D-O is a complete 24,000 BTU (2-ton) single-zone ductless mini split heat pump system: the A-24-HP-C-230D-O outdoor condenser and the A-24-HP-WMAH-230D-O wall-mounted indoor unit with wireless remote. AHRI rated at 18.7 SEER2, 10.0 EER2 and 9.3 HSPF2 (AHRI #216032586) on R-454B refrigerant, it heats and cools one room or zone up to 1,050 sq ft without ductwork.
You deserve to be comfortable in your own home, which is why you need the highly efficient 5th Generation 24k BTU 230V Advantage condenser. This new system, which must be installed by an HVAC professional, is much more efficient and eco friendly than its previous generation, achieving a SEER2 rating of 18.7 as well as an HSPF2 4 rating of 9.3, ensuring you’ll be able to enjoy the temperature you want without the risk of making your electricity bills skyrocket.
It’s able to achieve this impressive efficiency in part because it utilizes R454B refrigerant instead of R410A. R454B is not only a highly efficient choice, it is an ecological choice as well, because it has a GWP (global warming potential) that’s 80 percent lower than the previous refrigerant used, meaning you’re saving the environment as you’re enjoying perfect temperatures in your living room.
Quiet, convenient, and equipped to cover around 1,050 sq. ft., this system will give you the comfort you need in the blink of an eye. Thanks to the Wi Fi module, you can integrate your system with your phone and Amazon Alexa and Google Assistant, meaning you don’t even have to touch a button to experience perfect comfort.
We’ve got your back once you register your unit with the Advantage’s 1 year parts warranty, 2 year compressor warranty, giving you perfect temperatures and total peace of mind all in one package. If you’re in need of comfort, the 5th Generation 24k BTU Advantage condenser is the unit for you.
What's Included
- 1 × A-24-HP-C-230D-O — Advantage 5th Gen 24,000 BTU heat pump condenser
- 1 × A-24-HP-WMAH-230D-O — Advantage 5th Gen 24,000 BTU wall-mounted indoor unit
- 1 × wireless remote control
- 16 ft install kit (per MRCOOL; Advantage condensers ship with an install kit)
System Performance
| AHRI Reference Number | 216032586 |
|---|---|
| Cooling Capacity | 24,000 BTU/h |
| Heating Capacity (47°F) | 24,000 BTU/h |
| SEER2 | 18.7 |
| EER2 | 10.0 |
| HSPF2 (Region IV) | 9.3 |
| Refrigerant | R-454B |
| Power Supply | 208/230V, 1-Phase, 60 Hz |
| Max Coverage Area | Up to 1,050 sq ft |
Component Specifications
Outdoor Unit — A-24-HP-C-230D-O
| Unit Dimensions (W x D x H) | 35.04" x 13.46" x 26.5" |
|---|---|
| Unit Weight | 94.58 lb |
| Minimum Circuit Ampacity | 19 A |
| Maximum Fuse / Breaker | 20 A |
| SEER2 | 18.7 |
| EER2 | 10 |
| HSPF2-4 | 9.3 |
| HSPF2-5 | 7.3 |
| Tonnage | 2 |
| Cooling Capacity | 24000 BTU |
| Heating Capacity | 24000 BTU |
| Voltage | 208–230V |
| Phase | 1 |
| Cycle | 60Hz |
| Max Fuse Breaker | 20A |
| Min Circuit Ampacity | 19A |
| Zone Capacity | 1 |
| Refrigerant Type | R-454B |
| Refrigerant Volume | 53.62 oz |
| Decibel Rating | 59.5 dBA |
| Inverter | DC |
| Max Line Set Length | 164 ft |
| Liquid Line Size | 3/8 in |
| Suction Line Size | 5/8 in |
| Compressor Motor Type | Rotary |
| Overload Protection | Yes |
| UL Listed | Yes |
| Csa Listed | Yes |
| ETL Listed | Yes |
| Energy Star Certified | No |
| AHRI Certified | Yes |
| Base Parts Warranty | 1 Year |
| Base Compressor Warranty | 2 Years |
| Net Dimensions | 13.46 in D × 26.5 in H × 35.04 in W |
| Net Weight | 94.58 lbs |

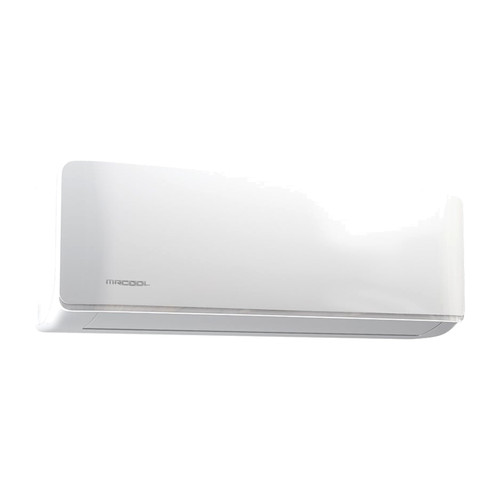

Indoor Unit — A-24-HP-WMAH-230D-O
| Unit Dimensions (W x D x H) | 42.52" x 8.9" x 13.19" |
|---|---|
| Unit Weight | 30.64 lb |
| Tonnage | 2 |
| Voltage | 208–230V |
| Phase | 1 |
| Cycle | 60Hz |
| Max Fuse Breaker | 15A |
| Min Circuit Ampacity | 3A |
| Color | White |
| Decibel Rating | 41.5 dBA |
| Decibel Rating (Low) | 21.5 dBA |
| Decibel Rating (High) | 54 dBA |
| Number Of Speeds | 5 |
| Max Line Set Length | 164 ft |
| Liquid Line Size | 3/8 in |
| Suction Line Size | 5/8 in |
| Filter Type | Reusable |
| Overload Protection | Yes |
| Remote Control Included | Yes |
| UL Listed | Yes |
| Csa Listed | Yes |
| ETL Listed | Yes |
| AHRI Certified | Yes |
| Base Parts Warranty | 1 Year |
| Base Compressor Warranty | 2 Years |
| Net Depth | 8.9 in |
| Net Height | 13.19 in |
| Net Width | 42.52 in |
| Net Weight | 30.64 lbs |
Compatibility & Installation
- Line set: Flare connections — 3/8 in liquid × 5/8 in suction; maximum line length 164 ft. Line set not included.
- Electrical: 208/230V single-phase, 60 Hz.
- Professional installation: Requires installation by a licensed HVAC technician (evacuation and charge verification with gauges). R-454B is an A2L refrigerant — follow current codes.
