Description

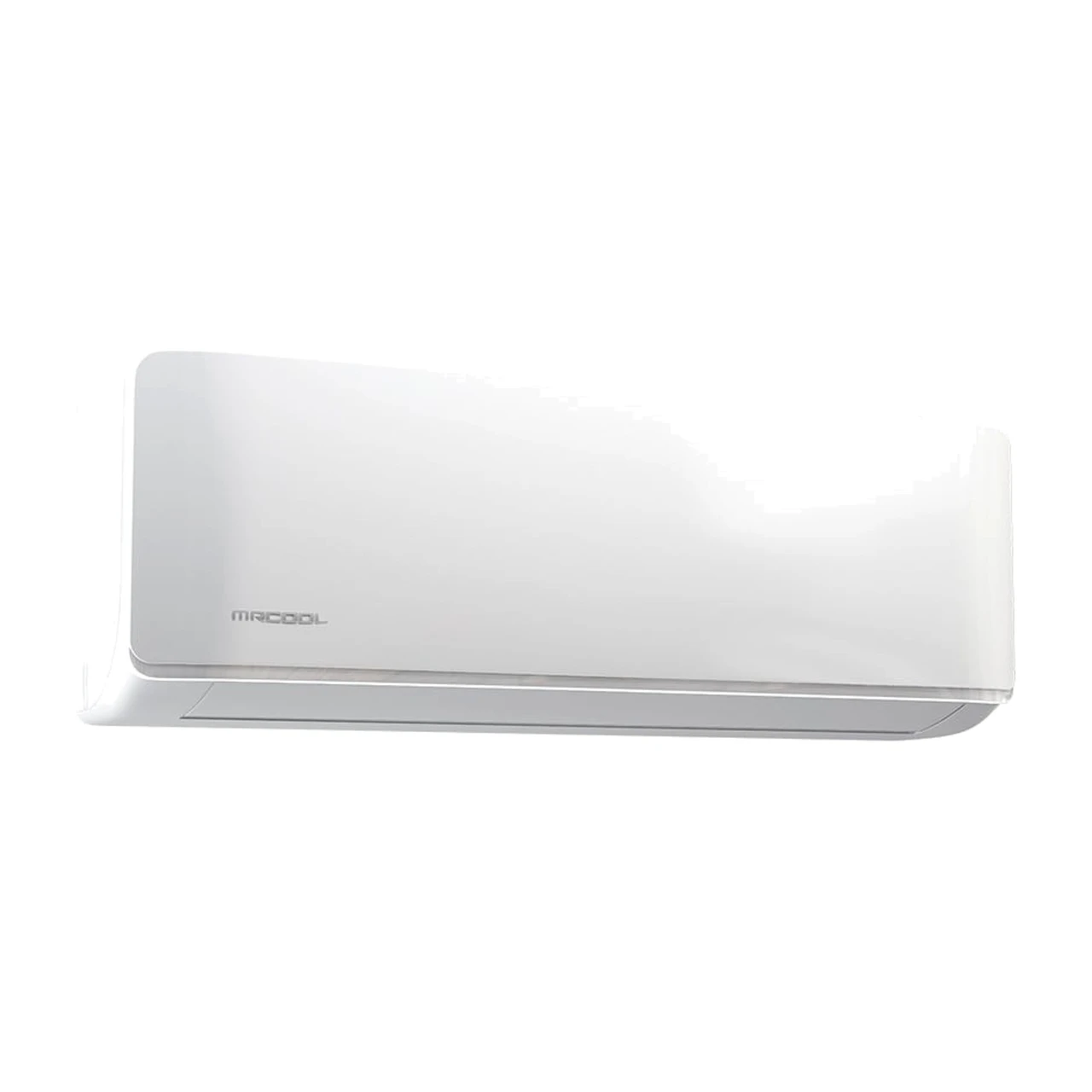

The MRCOOL Advantage 5th Gen A-24-HP-WMAH-230D-O is a 24,000 BTU (2-ton) wall mounted indoor unit (air handler) for MRCOOL Advantage 5th Gen single-zone ductless systems using R-454B refrigerant.
Enjoy year round comfort with the 5th Generation MRCOOL® 24k BTU Advantage Air Handler, now enhanced with R454B refrigerant. This eco friendly addition boosts energy efficiency, reduces greenhouse gas emissions, and offers a lower Global Warming Potential (GWP), making it a smart choice for homeowners seeking an environmentally conscious climate solution.
Engineered for larger spaces, this powerful yet whisper quiet unit delivers effective heating and cooling without requiring ductwork, making it both an efficient and budget friendly option. The Advantage Series Air Handler provides balanced temperature control throughout your space. With built in Wi Fi capability, you can conveniently manage settings remotely and program the system to adjust overnight for maximized comfort and energy savings.
This intelligent control feature lets you stay in charge of your home’s climate while minimizing energy use, ensuring cozy nights and lower utility bills. MRCOOL’s Advantage Series offers a robust warranty once you register your unit 1 year parts warranty 2 year compressor warranty and 1 year remote control warranty offering reliable performance and peace of mind.
Say goodbye to comfort concerns with the MRCOOL’s Advantage, designed to meet your home’s unique heating and cooling needs with efficiency, durability, and modern convenience in mind. Experience ultimate comfort without the worry with the MRCOOL® Advantage Air Handler!
Key Features
- Variable fan speeds: 5 fan speeds for quiet operation.
- Quiet: As low as 21.5 dBA.
- Remote control: Wireless remote included.
Product Specifications
| Unit Dimensions (W x D x H) | 42.52" x 8.9" x 13.19" |
|---|---|
| Unit Weight | 30.64 lb |
| Max Coverage Area | Up to 1,050 sq ft |
| Brand | MRCOOL |
| Model | A-24-HP-WMAH-230D-O |
| Series | Advantage 5th Gen |
| Tonnage | 2 |
| Voltage | 208–230V |
| Phase | 1 |
| Cycle | 60Hz |
| Max Fuse Breaker | 15A |
| Min Circuit Ampacity | 3A |
| Color | White |
| Decibel Rating | 41.5 dBA |
| Decibel Rating (Low) | 21.5 dBA |
| Decibel Rating (High) | 54 dBA |
| Number Of Speeds | 5 |
| Max Line Set Length | 164 ft |
| Liquid Line Size | 3/8 in |
| Suction Line Size | 5/8 in |
| Filter Type | Reusable |
| Overload Protection | Yes |
| Remote Control Included | Yes |
| UL Listed | Yes |
| Csa Listed | Yes |
| ETL Listed | Yes |
| AHRI Certified | Yes |
| Base Parts Warranty | 1 Year |
| Base Compressor Warranty | 2 Years |
| Net Depth | 8.9 in |
| Net Height | 13.19 in |
| Net Width | 42.52 in |
| Net Weight | 30.64 lbs |
Compatibility & Installation
Matched with: : Yes Works with iOS: Yes Works with Android: Yes Remote Control Included: Yes UL Listed: Yes CSA Listed: Yes ETL Listed: Yes AHRI Certified: Yes Base Parts Warranty: 1 Year Base Compressor Warranty: 2 Years Has Batteries: Yes Contains Chemicals: Yes Contains Compressed Gas: Yes Proposi
- Line set: Flare connections — 3/8 in liquid × 5/8 in suction; maximum line length 164 ft. Line set not included.
- Electrical: 208/230V single-phase, 60 Hz.
- Professional installation: Requires installation by a licensed HVAC technician (evacuation and charge verification with gauges). R-454B is an A2L refrigerant — follow current codes.
