Overview

Rheem 5 Ton 13.4 SEER2 Commercial Heat Pump Package Unit, Convertible, Direct Drive, 208/230V 3-Phase, R454B | RHPCYB060ACT000AAAA0

Rheem 5 Ton 13.4 SEER2 Commercial Heat Pump Package Unit, Convertible, Direct Drive, 208/230V 3-Phase, R454B, model RHPCYB060ACT000AAAA0
Product details

Description

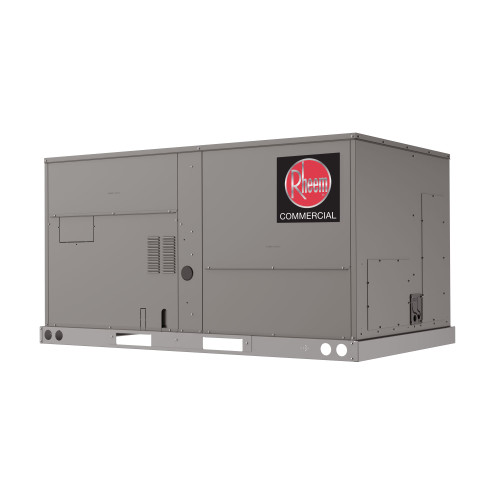

Rheem 5 Ton Commercial Heat Pump Package Unit (RHPCYB060ACT000AAAA0)

The Rheem RHPCYB060ACT000AAAA0 is a Renaissance Line Classic Series packaged heat pump rooftop unit for light commercial buildings with 208/230 volt 3-phase service: retail, offices, restaurants, schools and churches. It heats and cools from one refrigerant circuit with no gas connection, and it ships as one self-contained cabinet for a roof curb or slab.

Cooling performance

  • Nominal capacity: 5 ton (57,000 BTU/h AHRI net cooling)
  • Cooling efficiency: 13.4 SEER2, 10.6 EER2 (AHRI 210/240)
  • Compressor: 1 scroll, 1-stage; RLA 16.0 A, LRA 156.4 A
  • Refrigerant: R-454B (A2L), factory charged, TXV metering, MicroChannel indoor and outdoor coils
  • Sound rating: 84 dB (AHRI 270)

Heating performance

  • High temperature heating (47°F): 57,000 BTU/h, COP 3.8
  • Low temperature heating (17°F): 26,200 BTU/h, COP 2.3
  • HSPF2: 6.7
  • Defrost: Automatic defrost control; a stage of electric heat can be energized during defrost when a heater kit is installed

Airflow and cabinet

The cabinet converts between downflow (vertical) and horizontal duct connections in the field. The indoor blower is a constant-torque direct-drive multi-speed motor, so airflow can be matched to the duct system at startup.

  • Nominal airflow: 2,000 CFM
  • Indoor blower: 1 HP constant-torque direct-drive (multi-speed), 11x11 FC centrifugal wheel, 1050 RPM, frame 48; FLA 7.6 A
  • Dimensions: 41-3/8 in H x 44-5/8 in W x 77-7/8 in L (cabinet); base-rail footprint 46-3/4 x 79-1/4
  • Operating weight: 562 lb
  • Shipping weight: 600 lb
  • Filters: (4) 2x16x16 in. disposable, furnished
  • Condensate drain: (1) 3/4 in.

Electrical

  • Power supply: 208/230V 3-Phase, 60 Hz (187-253 V)
  • Minimum circuit ampacity: 33 A (36 A with optional powered exhaust)
  • Overcurrent protection: 45 A max overcurrent protection (50 A with powered exhaust); min OCP 40 A (40 A with PE)

Auxiliary electric heat

Compatible Rheem heater kits approved for this exact model and voltage: RXJJ-DC10CP (10 kW), RXJJ-DC15CP (15 kW), RXJJ-DC20CP (20 kW). Choose one in the "Add an Electric Heat Strip" option; the kit is sold separately and is not included in the base price. Unit MCA and overcurrent protection increase with the heater installed; size the supply circuit from the Rheem heater table for the kit you choose.

White Paper

Comfort for the people who live there

The right equipment keeps the rooms you live in steady and quiet, whether it's dinner in the kitchen or a weekend project in the garage.

Specifications

Extra Information

Find your comfort-ready size with confidence

Get a fast, learning-friendly estimate for tons and BTUs, then review it with a Pro to dial in the perfect fit for your home.

Brand:
Rheem
Width:
44.62 (in)
Height:
41.38 (in)
Depth:
77.88 (in)
Weight:
600.00 LBS
Refrigerant Type:
R-454B
Product Height:
41.38 in
Product Width:
44.62 in
Product Depth:
77.88 in
AHRI Certified:
Yes
Capacity (Tons):
5
Cooling Capacity (BTU):
57,000
SEER2:
13 SEER2
EER2:
10 EER2
HSPF2:
6 HSPF2
Heating Capacity at 47F (BTU):
57,000
COP at 47F:
3.8
Heating Capacity at 17F (BTU):
26,200
COP at 17F:
2.3
Electrical Phase:
3-Phase
Voltage / Phase:
208/230V 3-Phase
Prop 65 Warning:
Yes
Safety Information:
⚠ WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Package Type:
Heat Pump
Compressor Stages:
Single Stage
Compressor Type:
Scroll
Product Category:
Heat Pump Package Unit
Product Line:
RHPCYB
Configuration:
Convertible
Blower Motor Type:
Direct Drive Constant Torque, 1 HP
Minimum Circuit Ampacity (MCA):
33 A
Maximum Overcurrent Protection (MOP):
45 A
Sound Level (dB):
84
Airflow (CFM):
2,000
Shipping Weight:
600 lb
Unit Weight:
562 lb
Filter Size:
(4) 2x16x16 in, furnished
Compatible Electric Heat Kits:
RXJJ-DC10CP (10 kW), RXJJ-DC15CP (15 kW), RXJJ-DC20CP (20 kW)
Electric Heat Options (kW):
10, 15, 20
Warranty Information:
5 Years Compressor & 1 Year Parts
Electrical Frequency:
60 Hz
DOE Regional Compliance:
Nationwide
Breaker Size (Amps):
45
Please Note: To validate the manufacturer's warranty, equipment must be installed by a qualified licensed professional in accordance with local codes and the manufacturer's installation requirements.

2023 Energy Standards

Department of Energy (DOE) State Regulations – Effective 2023

Click the link below to view the energy standards applicable to your region.

DOE State Standards Document

Department of Energy (DOE) State Regulations – Effective 2023

Click the link below to view the energy standards applicable to your region.

DOE State Standards Document

Documents & warranty
Warranty
10 Years Compressor & 10 Years Parts | Registration Required within 60 Days of Purchase
Videos1 videos
Rheem Commercial: Extremely Tested. Extremely Tough.
Frequently asked questions
What refrigerant does the use?
It uses R-454B refrigerant.
What size is the ?
The is a 5 ton unit.
How much cooling does the provide?
It is rated for 57,000 BTU of cooling.
What is the SEER2 rating of the ?
The is rated at 13 SEER2 SEER2.
What is the HSPF2 heating efficiency of the ?
It is rated at 6 HSPF2 HSPF2.
What power supply does the need?
It requires 208/230V 3-Phase power.
What warranty comes with the RHPCYB060ACT000AAAA0?
10 Years Compressor & 10 Years Parts | Registration Required within 60 Days of Purchase
Who makes the RHPCYB060ACT000AAAA0?
The RHPCYB060ACT000AAAA0 is made by Rheem.
