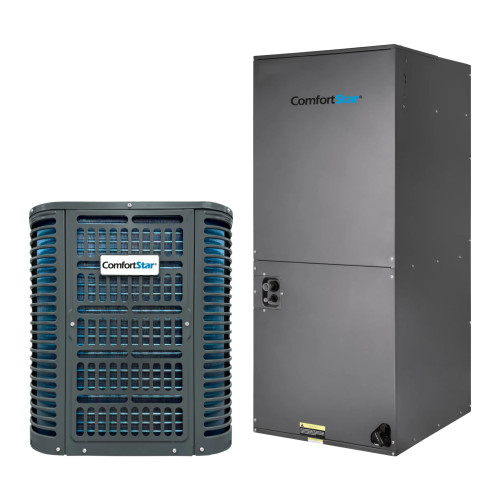

Comfortstar BAH6 2 Ton Heat Pump Split System (BAH6-24-15 + LUC6-24-15)
This is a complete, AHRI matched heat pump system from Comfortstar: the BAH6-24-15 top-discharge heat pump and the LUC6-24-15 multi-position air handler, running on R-454B. Together they are rated at 23,000 BTU/h cooling, 22,400 BTU/h heating, 14.3 SEER2 and 11.7 EER2 with 7.5 HSPF2 under AHRI certificate 217133172.
The outdoor unit is a straightforward single-stage scroll heat pump: fewer parts, simple 24V controls and easy service. It is a dependable choice for replacements and new construction where you want solid efficiency without the cost of variable-speed equipment.
Indoors, the LUC6-24-15 installs upflow, downflow or horizontal, so it works in closets, attics and crawl spaces. Its ECM blower moves up to 742 CFM and the system runs on a standard 24V heat pump thermostat, so no proprietary controls are required.
Heat Pump: BAH6-24-15 Specifications
- Nominal Capacity (Tons): 2
- Rated Cooling Capacity (BTU/h): 23,000
- Rated Heating Capacity @ 47°F (BTU/h): 22,400
- Compressor: Single-Stage Scroll
- Discharge: Top
- Refrigerant: R-454B
- Voltage/Phase/Hz: 208-230 V / 1 Ph / 60 Hz
- MCA / MOP: 20 A / 30 A
- Liquid / Suction Line: 3/8" / 3/4"
- Max Line Length: 131 ft
- Sound Level: 60 dBA
- Dimensions (W x D x H): 21 4/5" x 21 4/5" x 25"
- Net / Shipping Weight: 133 lb / 139 lb
Air Handler: LUC6-24-15 Specifications
- Configuration: Multi-Position
- Blower Motor: ECM
- Airflow (CFM, high to low): 742
- Refrigerant: R-454B
- Voltage/Phase/Hz: 208-230 V / 1 Ph / 60 Hz
- MCA / MOP (without heat): 1.5 A / 3 A
- Electric Heat: Field-installed heat strip, sold separately
- Dimensions (W x D x H): 19 5/8" x 22" x 45 3/4"
- Net Weight: 123 lb
System Ratings
- AHRI Reference Number: 217133172
- SEER2: 14.3
- EER2: 11.7
- HSPF2: 7.5
Both units ship separately. Line set, thermostat, disconnect, condenser pad, filter and electric heat strip are sold separately. Installation and service require a licensed HVAC technician.
