Goodman 2.5 Ton 16 SEER2 92% AFUE 60,000 BTU Gas Electric Air Conditioner Split System Horizontal R-32 | GLXS5BA3010 GR9S920603BN CHPTA3630B3

Goodman 2.5 Ton 16 SEER2 92% AFUE 60,000 BTU Gas Electric Air Conditioner Split System Horizontal R-32 | GLXS5BA3010 GR9S920603BN CHPTA3630B3

Name: Goodman 2.5 Ton 16 SEER2 92% AFUE 60,000 BTU Gas Electric Air Conditioner Split System Horizontal R-32 | GLXS5BA3010 GR9S920603BN CHPTA3630B3
Brand: Goodman
SKU: GLXS5BA3010-GR9S920603BN-CHPTA3630B3
Price: 5230 USD
Availability: InStock

Goodman

5 Star RatingLeave a review

No reviews yet Write a Review

SKU:: GLXS5BA3010-GR9S920603BN-CHPTA3630B3

Your Price $0.00

Detecting ZIP...

Est. Net Incentive Amount: $0.00

We could not detect your ZIP automatically. Enter your ZIP to check incentives.

Available Incentives

$0.00

Selected Incentives

Unpriced Programs

Estimates assume eligibility; programs and amounts can change.

Learn more about incentives

Goodman 2.5 Ton 16 SEER2 92% AFUE 60,000 BTU Gas Electric Air Conditioner Split System Horizontal R-32, model GLXS5BA3010 GR9S920603BN CHPTA3630B3 - view 5

UPC:
Condition:: New
Width:: 48.00 (in)
Height:: 46.00 (in)
Depth:: 40.00 (in)

Questions about Goodman 2.5 Ton 16 SEER2 92% AFUE 60,000 BTU Gas Electric Air Conditioner Split System Horizontal R-32 | GLXS5BA3010 GR9S920603BN CHPTA3630B3?

SupplierGateway® Certified i

Minority-Owned • Small Business

View Certification

Fast Shipping

Customer Support

Warranty Coverage

Financing Available

$5,230.00

Overview

Goodman 2.5 Ton 16 SEER2 92% AFUE 60,000 BTU Gas Electric Air Conditioner Split System Horizontal R-32 | GLXS5BA3010 GR9S920603BN CHPTA3630B3

Product details

Description

The Goodman 2.5 Ton 16 SEER2 92% AFUE 60,000 BTU Gas Electric Air Conditioner Split System Horizontal R-32 (GLXS5BA3010 / GR9S920603BN / CHPTA3630B3) is a complete residential heating and cooling solution designed for dependable year-round comfort. This matched system combines a 2.5-ton R-32 air conditioner, 92% AFUE gas furnace, and horizontal cased evaporator coil for energy-efficient cooling and reliable heating.

Designed for horizontal installation, the system features a single-stage high-efficiency gas furnace and a multi-speed ECM blower motor for consistent airflow and efficient operation. Its compact horizontal configuration makes it suitable for attics, crawl spaces, and other limited-height installation areas.

Key Features

2.5 Ton Cooling Capacity – Delivers 30,000 BTU of residential cooling
16 SEER2 Efficiency – Supports energy-efficient cooling performance
60,000 BTU Gas Furnace – Provides dependable single-stage heating
92% AFUE Efficiency – Converts approximately 92% of fuel into usable heat
Horizontal R-32 System – Suitable for limited-height installation areas

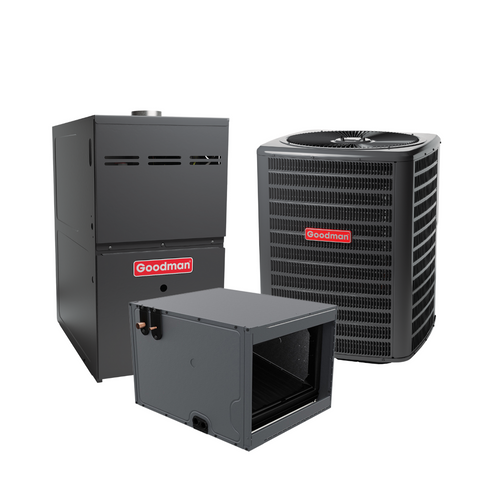

System Components Included

Goodman GLXS5BA3010 2.5 Ton 16 SEER2 R-32 Air Conditioner
Goodman GR9S920603BN 60,000 BTU 92% AFUE Single-Stage Gas Furnace
Goodman CHPTA3630B3 Cased Horizontal R-32 Evaporator Coil

Compatibility & Installation Notes

The GLXS5BA3010 / GR9S920603BN / CHPTA3630B3 system is designed for residential horizontal applications. Compatibility with the property’s ductwork, electrical service, gas supply, refrigerant lines, condensate drainage, and high-efficiency furnace venting must be confirmed before installation.

Installation Notes

Verify compatibility with the existing horizontal ductwork
Confirm electrical service and natural gas connection requirements
Check the required refrigerant line sizes before installation
Install approved high-efficiency venting and proper condensate drainage
Installation should be completed by a qualified HVAC professional

Frequently Asked Questions

What is included in this Goodman HVAC system?

The package includes the GLXS5BA3010 air conditioner, GR9S920603BN gas furnace, and CHPTA3630B3 horizontal evaporator coil.

What is the cooling capacity of this system?

The system provides 2.5 tons or 30,000 BTU of cooling capacity.

Is the furnace single-stage or two-stage?

The Goodman GR9S920603BN is a single-stage gas furnace that delivers consistent heating output.

What does 92% AFUE mean?

It means approximately 92% of the furnace’s fuel is converted into usable heating energy.

Does this system use R-32 refrigerant?

Yes. The air conditioner and evaporator coil are designed for R-32 refrigerant.

White Paper

Comfort for the people who live there

The right equipment keeps the rooms you live in steady and quiet, whether it's dinner in the kitchen or a weekend project in the garage.

Specifications

Extra Information

Find your comfort-ready size with confidence

Get a fast, learning-friendly estimate for tons and BTUs, then review it with a Pro to dial in the perfect fit for your home.

Quick sizing snapshot

Enter your home size and a few basics to see a quick HVAC365 sizing snapshot you can review with a Professional.

Home size (sq ft)

Enter at least 100 sq ft.

Use conditioned square footage only; skip garages and unfinished basements.

Climate

We’ll auto-detect for U.S. visitors.

Home type

Select your home type.

Shared walls and insulation levels change the load—pick what matches your structure.

System type

Choose a system type.

Match the system to your ductwork, fuel, or preferred heat source for best comfort.

This is a sizing estimate for general guidance only. Always confirm final size, duct design, and fuel type with a Professional before purchasing equipment or pulling permits.

Brand:

Goodman

Width:

48.00 (in)

Height:

46.00 (in)

Depth:

40.00 (in)

Weight:

444.00 LBS

EER:

12.5

Capacity (Tons):

2.5

AHRI Certified:

Yes

Configuration:

Horizontal

Product Category:

Gas Heating & Air Conditioner Bundle

Safety Information:

⚠ WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

Shipping Weight:

215.5 lb

Refrigerant Type:

R-32

Prop 65 Warning:

Yes

Vent Type:

PVC / Category IV

SEER2:

16 SEER2

AHRI Reference Number:

215380627

Blower Motor Type:

ECM Constant Torque

Airflow (CFM):

1,200

Cabinet Width (in):

17.5

Color:

Gray

AFUE:

90–95%

Electrical Frequency:

60 Hz

EER2:

12 EER2

Liquid Line Size:

3/8 in

Electrical Phase:

1-Phase

Heating Input (BTU):

40,000 - 69,000 BTU

Heating Stages:

Single Stage

Unit Weight:

200.5 lb

Line Set Connection Type:

Braze

Cooling Capacity (BTU):

30,000

DOE Regional Compliance:

Nationwide

Compressor Stages:

Single Stage

Voltage / Phase:

208/230V 1-Phase

Condenser GLXS5BA3010 - Nominal Capacity (Tons):

2.5

Condenser GLXS5BA3010 - Cooling Capacity (BTU/h):

30,000

Condenser GLXS5BA3010 - Refrigerant:

R-32

Condenser GLXS5BA3010 - Voltage/Phase/Hz:

208-230 V / 1 Ph / 60 Hz

Condenser GLXS5BA3010 - Minimum Circuit Ampacity (MCA):

15.4 A

Condenser GLXS5BA3010 - Maximum Overcurrent Protection (MOP):

25 A

Condenser GLXS5BA3010 - Compressor Type:

Scroll

Condenser GLXS5BA3010 - Compressor Stages:

Single Stage

Condenser GLXS5BA3010 - Liquid Line Size:

3/8 in

Condenser GLXS5BA3010 - Suction Line Size:

3/4 in

Condenser GLXS5BA3010 - Sound Level (dB):

Condenser GLXS5BA3010 - Shipping Weight:

214 lb

Furnace GR9S920603BN - Input (BTU/h):

60,000

Furnace GR9S920603BN - Output (BTU/h):

55,260

Furnace GR9S920603BN - AFUE:

90–95%

Furnace GR9S920603BN - Heating Stages:

Single Stage

Furnace GR9S920603BN - Blower Motor Type:

ECM Constant Torque

Furnace GR9S920603BN - Maximum Cooling Capacity (Tons):

Furnace GR9S920603BN - Configuration:

Upflow/Horizontal

Furnace GR9S920603BN - Cabinet Width:

17.5 in

Furnace GR9S920603BN - Vent Type:

PVC / Category IV

Furnace GR9S920603BN - Gas Type:

Propane Convertible

Furnace GR9S920603BN - Voltage/Phase/Hz:

115 V / 1 Ph / 60 Hz

Furnace GR9S920603BN - Unit Dimensions (W x D x H):

17.5 in x 21.25 in x 31 in

Furnace GR9S920603BN - Shipping Weight:

114 lb

Evaporator Coil CHPTA3630B3 - Nominal Capacity (Tons):

Evaporator Coil CHPTA3630B3 - Cased/Uncased:

Cased

Evaporator Coil CHPTA3630B3 - Configuration:

Horizontal

Evaporator Coil CHPTA3630B3 - Cabinet Width:

30 in

Evaporator Coil CHPTA3630B3 - Metering Device:

TXV

Evaporator Coil CHPTA3630B3 - Refrigerant:

R-32

Evaporator Coil CHPTA3630B3 - Liquid Line Size:

3/8 in

Evaporator Coil CHPTA3630B3 - Suction Line Size:

7/8 in

System Type:

Gas Electric Split System

Cooling Capacity:

2.5 Ton / 30,000 BTU

Heating Output:

Approximately 55,200 BTU

Furnace Efficiency:

92% AFUE

Refrigerant / Orientation:

R-32 / Horizontal

Please Note: To validate the manufacturer's warranty, equipment must be installed by a qualified licensed professional in accordance with local codes and the manufacturer's installation requirements.
