Goodman 2 Ton 16 SEER2 80% AFUE 80,000 BTU Gas Electric Air Conditioner Split System Upflow R-32 | GLXS5BA2410 GR9S800804CX CAPTA3026C3

The Goodman 2 Ton 16 SEER2 80% AFUE 80,000 BTU Gas Electric Air Conditioner Split System Upflow R-32 (GLXS5BA2410 / GR9S800804CX / CAPTA3026C3) is a complete residential heating and cooling solution designed for dependable year-round comfort. This matched system combines a 2-ton R-32 air conditioner, 80% AFUE gas furnace, and vertical cased evaporator coil for energy-efficient cooling and reliable heating.

Designed for upflow installation, the system features a single-stage gas furnace and a nine-speed ECM blower motor for consistent airflow and efficient operation. Its upflow configuration makes it suitable for basements, utility rooms, closets, and other applications where conditioned air is distributed upward through the ductwork.

Key Features

• 2 Ton Cooling Capacity – Delivers 24,000 BTU of residential cooling
• 16 SEER2 Efficiency – Supports energy-efficient cooling performance
• 80,000 BTU Gas Furnace – Provides dependable single-stage heating
• 80% AFUE Efficiency – Converts approximately 80% of fuel into usable heat
• Upflow R-32 System – Designed for vertical, upward-airflow applications

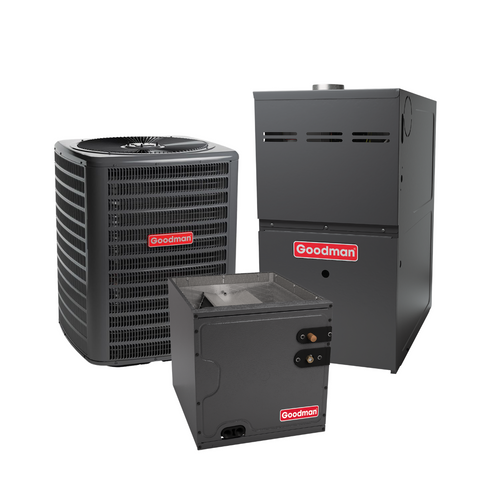

System Components Included

• Goodman GLXS5BA2410 2 Ton 16 SEER2 R-32 Air Conditioner
• Goodman GR9S800804CX 80,000 BTU 80% AFUE Single-Stage Gas Furnace
• Goodman CAPTA3026C3 2.5 Ton Cased Upflow/Downflow R-32 Evaporator Coil

Compatibility & Installation Notes

The GLXS5BA2410 / GR9S800804CX / CAPTA3026C3 system is designed for residential upflow applications. The larger nominal evaporator coil is matched with the 2-ton condenser to support the system’s rated efficiency. Compatibility with the property’s ductwork, electrical service, gas supply, refrigerant lines, condensate drainage, and metal furnace flue must be confirmed before installation.

Specifications

• System Type: Gas Electric Split System
• Cooling Capacity: 2 Ton / 24,000 BTU
• Heating Input: 80,000 BTU
• Heating Output: Approximately 64,000 BTU
• Cooling Efficiency: 16 SEER2
• Furnace Efficiency: 80% AFUE
• Heating Stages: Single-Stage
• Blower Motor: Nine-Speed ECM
• Refrigerant / Orientation: R-32 / Upflow

Installation Notes

• Verify compatibility with the existing upflow ductwork
• Confirm electrical service and natural gas connection requirements
• Check the required refrigerant line sizes before installation
• Install a properly sized metal flue and proper condensate drainage
• Installation should be completed by a qualified HVAC professional

Frequently Asked Questions

What is included in this Goodman HVAC system?

The package includes the GLXS5BA2410 air conditioner, GR9S800804CX gas furnace, and CAPTA3026C3 cased evaporator coil.

What is the cooling capacity of this system?

The system provides 2 tons or 24,000 BTU of cooling capacity.

Why does this system include a 2.5-ton evaporator coil?

The CAPTA3026C3 has a nominal capacity of 2.5 tons and is matched with the 2-ton condenser to support the system’s rated cooling performance and efficiency. Final equipment matching should be confirmed using the applicable AHRI certificate.

Is the furnace single-stage or two-stage?

The Goodman GR9S800804CX is a single-stage gas furnace that delivers consistent heating output.

What does 80% AFUE mean?

It means approximately 80% of the furnace’s fuel is converted into usable heating energy.

Does this system use R-32 refrigerant?

Yes. The air conditioner and evaporator coil are designed for R-32 refrigerant.
