Rheem 2 Ton Multi-Position Air Handler R454B

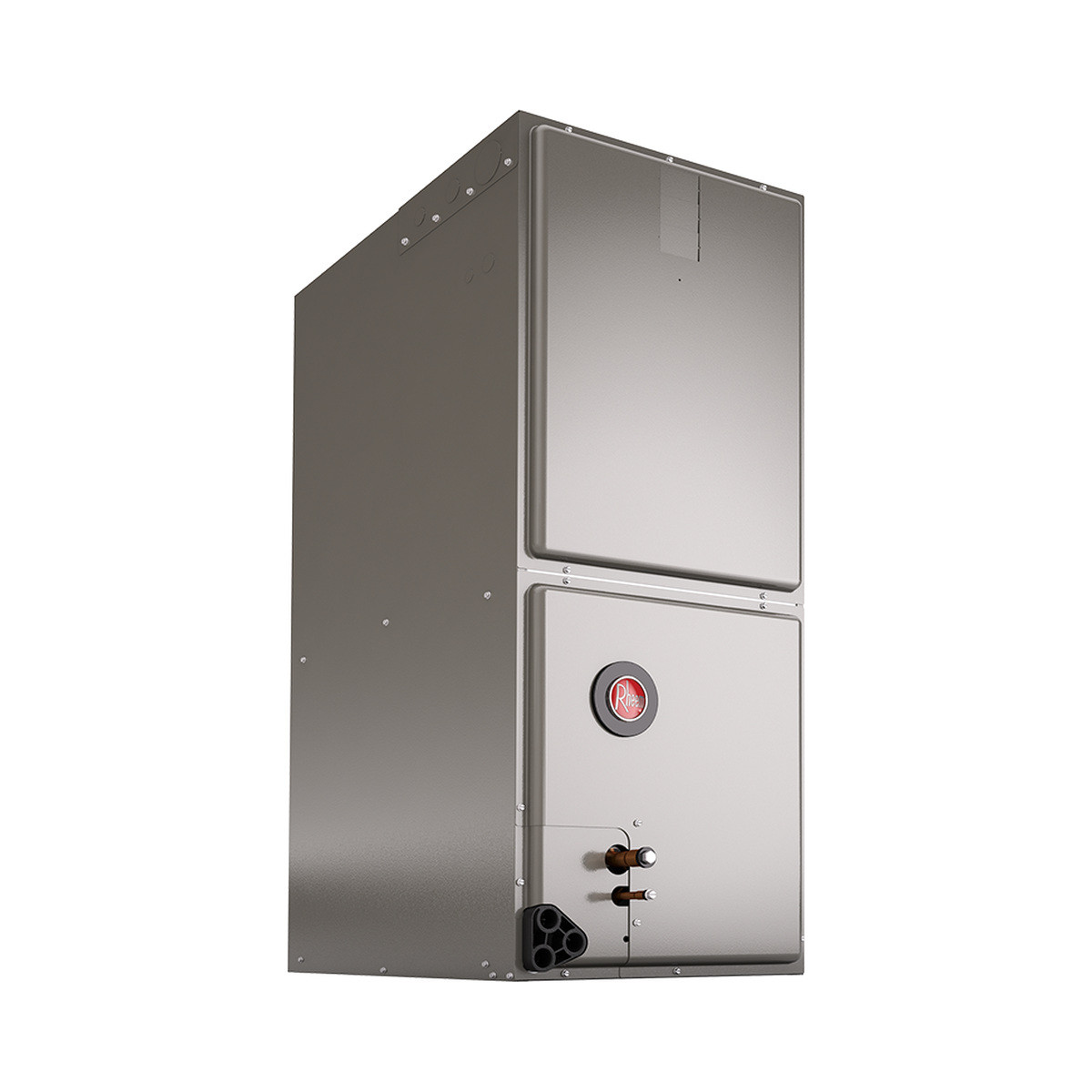

The Rheem RH1AY2417STANNJ is a Rheem air handler.
Specifications
- Model: RH1AY2417STANNJ
- Product Category: Air Handler
- Product Line: RA14AY
- Refrigerant Type: R-454B
- Capacity (Tons): 2
- Cooling Capacity (BTU): 24,000
- Product Height: 42.5 in
- Product Width: 17.5 in
- Product Depth: 21.7 in
- Compatible Electric Heat Kits: RXBH-1724(A/B/C)03J-B (3 kW), RXBH-1724(A/B/C)05J-B (4.8 kW), RXBH-1724(A/B/C)07J-B (7.2 kW), RXBH-1724(A/B/C)10J-B (9.6 kW), RXBH-1724A13J-B (12.5 kW)
- Electric Heat Options (kW): 3, 4.8, 7.2, 9.6, 12.5
- Electrical Phase: 1-Phase
- Configuration: Multi-Position
- Metering Device: TXV
- Cabinet Width (in): 17.5
- Voltage / Phase: 208/230V 1-Phase
Matching and electric heat
Pair this air handler with a Rheem outdoor unit listed for it in the AHRI directory to get certified efficiency. Electric heat strips are sold separately. Use only the Rheem heater kits listed for this model on its specification sheet.
Installation
The air handler needs its own electrical circuit sized for the blower and any electric heat, a condensate drain with a trap, and a properly sized return and filter. R-454B systems require installation by a licensed HVAC technician following Rheem's A2L procedures.
Common questions
Does this include a heat strip?
No. Electric heat strips are sold separately; use a Rheem kit listed for this model.
Can it be installed horizontally?
Multi-position models can be installed upflow, downflow or horizontal; follow the installation manual for the conversion steps for each position.
What refrigerant does it use?
R-454B. It must be paired with an R-454B outdoor unit, and it includes the refrigerant leak detection required for A2L systems where specified by Rheem.
