Description

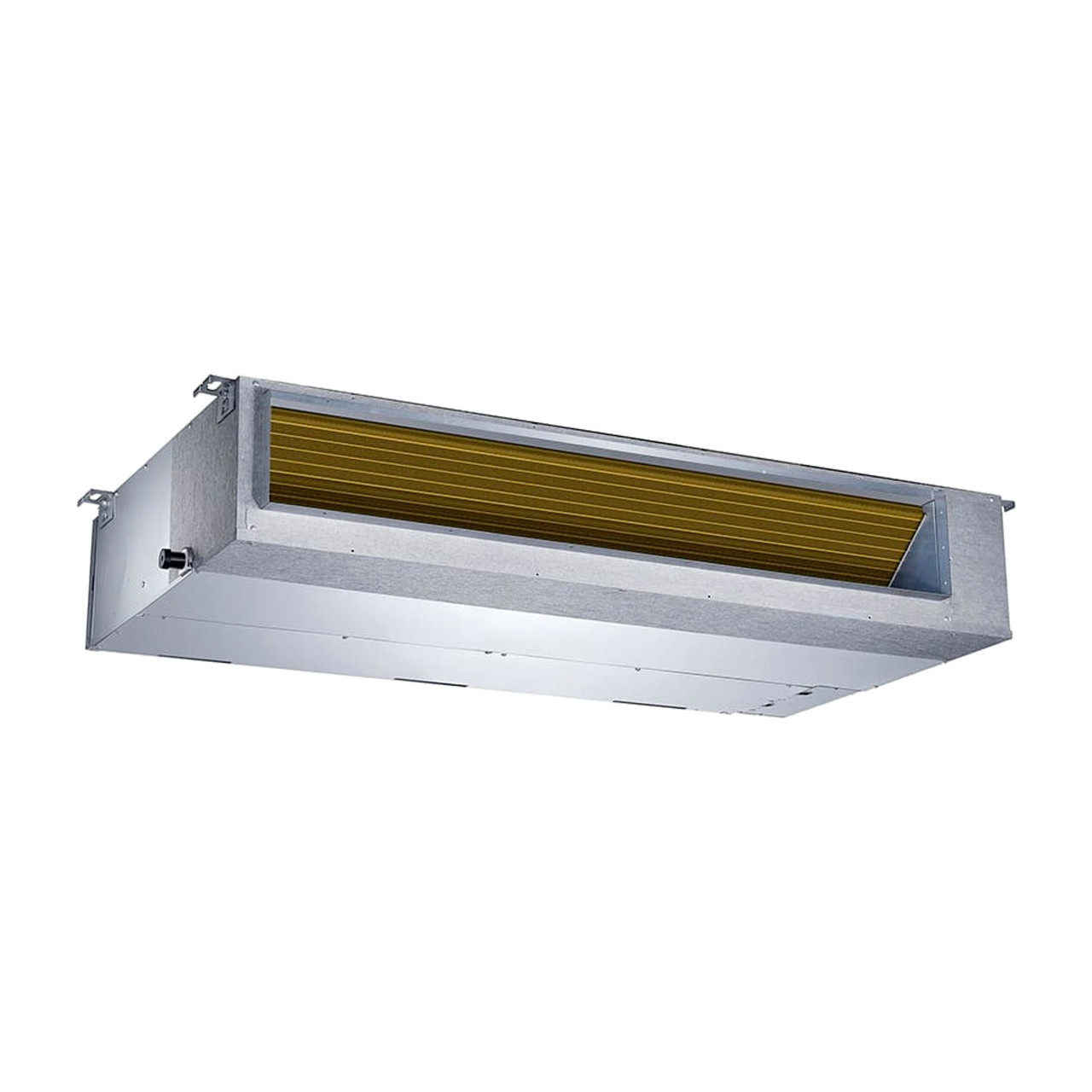

The MRCOOL Olympus 4th Gen DUCT-18HP-230B-O is a 18,000 BTU (1.5-ton) concealed ducted indoor unit (air handler) for MRCOOL Olympus 4th Gen single-zone and multi-zone ductless systems using R-454B refrigerant. It hides above a ceiling or in a closet and distributes air through short duct runs, so only supply and return grilles show in the room.
The MRCOOLĀ® OLYMPUS 18K DUCT Air Handler delivers dependable heating and cooling for areas up to 800 square feet, making it an excellent solution for spacious bedrooms, home offices, or compact commercial spaces. Its low-profile, ceiling-concealed installation allows it to virtually disappear from view, maintaining a clean and modern interior without sacrificing performance.
Designed with versatility in mind, this system seamlessly blends into residential or light commercial environments, offering both elegance and efficiency in one compact package. Whether you're looking to optimize comfort at home or in a workspace, this unit is engineered to provide precise climate control without dominating your space.Control is effortless thanks to the included wired wall-mounted controller and handheld remote.
Adjusting your temperature preferences is simple and convenientāno need to interrupt your routine or leave your seat. Environmentally conscious performance is also a hallmark of this system, utilizing R-454B refrigerant type. This low global warming potential refrigerant provides outstanding heating and cooling while significantly reducing your carbon footprint.
It's an ideal choice for anyone seeking high performance paired with sustainability.The MRCOOLĀ® OLYMPUS 18K DUCT Air Handler is backed by a 7 year compressor warranty and a 5 year parts warranty. Itās the perfect choice for those who prioritize comfort, energy efficiency, and modern convenience in a sleek, discreet design. Find the Brochure HERE
Key Features
- Variable fan speeds: 5 (Variable) fan speeds for quiet operation.
- Quiet: As low as dBA.
- Remote control: Wireless remote included.
- Coverage: Up to 800 sq ft.
Product Specifications
| Brand | MRCOOL |
|---|---|
| Model | DUCT-18HP-230B-O |
| Series | Olympus 4th Gen |
| Tonnage | 1.5 |
| Voltage (V) | 230 |
| Phase | 1 |
| Cycle | 60 |
| Max Fuse Breaker (A) | 15 |
| Min Circuit Ampacity (A) | 3 |
| Mount Type | Ducted |
| Max Coverage Area | Up to 800 |
| Refrigerant Type | R-454B |
| Number Of Speeds | 5 (Variable) |
| Lineset Fitting Type | Flare |
| Liquid Line Size | 1/4 |
| Suction Line Size | 1/2 |
| Fan Only Option | Yes |
| Sleep Mode | Yes |
| Auto Cool | Yes |
| Wifi Compatibility | No |
| Remote Control Included | Yes |
| UL Listed | Yes |
| Csa Listed | Yes |
| ETL Listed | Yes |
| Base Warranty | 5-Year Parts |
| Base Parts Warranty | 5-Year |
| Base Remote Warranty | 5 Year |
| Net Depth (in) | 26.54 |
| Net Height (in) | 8.27 |
| Net Width (in) | 34.65 |
| Net Weight (lb) | 54.45 |
Compatibility & Installation
Matched with: Olympus 18k 4th Gen E-Star Condenser - 230v Olympus 27k 4th Gen Multi Zone 4 Condenser - 230v Olympus 36k 4th Gen Multi Zone 5 Condenser - 230v Olympus 48k 4th Gen Multi Zone 6 Condenser - 230v Mini Split Line Sets 1/4"-1/2" Line Guards MRCOOL Mini-StatsMB1 76 - Condenser Wall Mounting Kit - 9k to 18k
- Line set: Flare connections ā 1/4" liquid Ć 1/2" suction; maximum line length per manual. Line set not included.
- Electrical: 208/230V single-phase, 60 Hz.
- Professional installation: Requires installation by a licensed HVAC technician (evacuation and charge verification with gauges). R-454B is an A2L refrigerant ā follow current codes.
Documents
- MRCOOL Olympus E Star Brochure And Specifications
- MRCOOL Olympus E Star Installation And Owner's Manual
- MRCOOL Olympus Series Limited Warranty
- MRCOOL Olympus Multi-Zone Brochure And Specifications
- MRCOOL Olympus Ceiling Cassette Installation And Owner's Manual
- MRCOOL Olympus Mid-Static Ducted Air Handler Installation Manual
