MRCOOL Olympus 4th Gen 48,000 BTU 3-Zone Wall Mounted Ductless Mini Split Heat Pump System (12k + 18k + 18k) 24.0 SEER2 R-454B 230V with Wi-Fi | MULTI6-48HP230C-O

MRCOOL

5 Star RatingLeave a review
No reviews yet Write a Review
SKU:
OLY-MZ48-3Z-12-18-18
Your Price $0.00

Detecting ZIP...
Est. Net Incentive Amount: $0.00
We could not detect your ZIP automatically. Enter your ZIP to check incentives.
Available Incentives
$0.00
Selected Incentives
0
Unpriced Programs
0
Estimates assume eligibility; programs and amounts can change.
Condition:
New
Width:
37.48 (in)
Height:
52.48 (in)
Depth:
16.34 (in)

Questions about MRCOOL Olympus 4th Gen 48,000 BTU 3-Zone Wall Mounted Ductless Mini Split Heat Pump System (12k + 18k + 18k) 24.0 SEER2 R-454B 230V with Wi-Fi | MULTI6-48HP230C-O?

Contact us for advice or additional information; our product specialists are here to help!

SupplierGateway® Certified i
Minority-Owned • Small Business

Fast Shipping

Customer Support

Warranty Coverage

Financing Available

$5,052.00

  • Qualifies for FREE Shipping
100 in stock • Ships in 3-4 Business Days
Overview

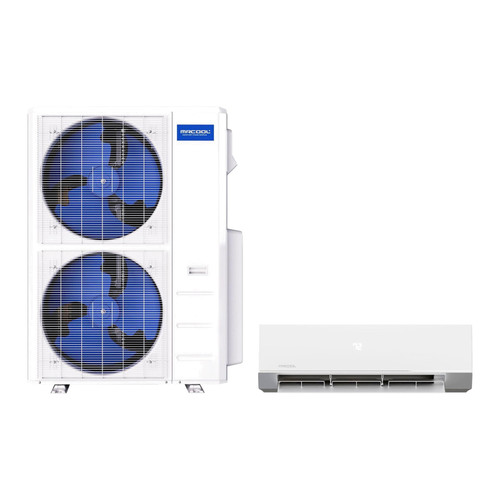

MRCOOL Olympus 4th Gen 48,000 BTU 3-Zone Wall Mounted Ductless Mini Split Heat Pump System (12k + 18k + 18k) 24.0 SEER2 R-454B 230V with Wi-Fi | MULTI6-48HP230C-O

Complete system: MRCOOL Olympus 4th Gen 48,000 BTU 3-Zone Wall Mounted Ductless Mini Split Heat Pump System (12k + 18k + 18k) 24.0 SEER2 R-454B 230V with Wi-Fi - complete system with included remote
Product details

Description

This MRCOOL Olympus 4th Gen 3-zone system pairs the MULTI6-48HP230C-O 48,000 BTU multi-zone heat pump condenser with 3 Olympus wall-mounted indoor units (12k + 18k + 18k) so each room keeps its own temperature. Every indoor unit is matched to MRCOOL's approved combination table for this condenser. AHRI rated at 24.0 SEER2, 12.5 EER2 and 10.3 HSPF2 with non-ducted indoor units (AHRI #217291701) on R-454B refrigerant. All rooms run in the same mode at one time, heating or cooling.

The MRCOOL® Olympus 48,000 BTU multi-zone heat pump condenser is a heating and cooling powerhouse engineered to handle up to six indoor units at once.Ideal for larger homes or spaces with diverse climate needs, this ductless solution offers precise, room-by-room comfort without the complexity of traditional HVAC systems.At the heart of its performance is advanced inverter technology, which maximizes energy efficiency with SEER2 ratings as high as 24 and HSPF2-4 ratings up to 10.6.Whether it’s sweltering heat or freezing cold, this unit remains dependable—capable of operating in outdoor temperatures as low as 5°F.Flexible compatibility with MRCOOL indoor unit styles—including sleek wall mounts, ceiling cassettes, and concealed duct models—ensures seamless integration with your home’s design.Ease of use is built into the experience.

Control your climate with the MRCOOL SmartHVAC app, traditional remotes, or hands-free commands via Amazon Alexa and Google Assistant.Features such as sleep mode, auto restart, and refrigerant leak detection are designed to keep your system running smoothly, safely, and efficiently.

What's Included

  • 1 × MULTI6-48HP230C-O — Olympus 4th Gen 48,000 BTU multi-zone heat pump condenser (up to 6 zones)
  • 1 × O-12-HP-WMAH-230C-O — Olympus 4th Gen 12,000 BTU wall-mounted indoor unit with wireless remote
  • 2 × O-18-HP-WMAH-230C-O — Olympus 4th Gen 18,000 BTU wall-mounted indoor unit with wireless remote

System Performance

AHRI Reference Number217291701
AHRI Rated Cooling Capacity47,000 BTU/h
SEER224.0
EER212.5
HSPF2 (Region IV)10.3
Indoor Unit TypeNon-Ducted (Wall Mounted)
RefrigerantR-454B
Power Supply230V, 1-Phase, 60 Hz

Component Specifications

Outdoor Unit — MULTI6-48HP230C-O

SEER2Up to 24
EER2Up to 12.5
HSPF2-410.3
HSPF2-58
Tonnage4
Cooling Capacity (BTU)47000
Heating Capacity (BTU)48000
Voltage (V)230
Max Fuse Breaker (A)40
Min Circuit Ampacity (A)34
ColorWhite
Max Coverage AreaUp to 2000
Zone Capacity6
Refrigerant TypeR-454B
Decibel Rating (dBA)63
InverterDC
Lineset Fitting TypeFlare
Liquid Line Size6 x 1/4
Suction Line Size4 x 3/8 + 2 x 1/2
Compressor Motor TypeRotary
Condenser Fan Motor RPM800/700/650
Metering DeviceEXV
Net Depth (in)16.34
Net Height (in)52.48
Net Width (in)37.48
Net Weight (lb)222

Indoor Unit (1 included) — O-12-HP-WMAH-230C-O

Tonnage1
Voltage (V)230
Max Fuse Breaker (A)15
Min Circuit Ampacity (A)3
Mount TypeWall
ColorWhite
Max Coverage AreaUp to 550
Refrigerant TypeR-454B
Decibel Rating (dBA)47/36.5/32.5/22/19.5
Decibel Rating Low (dBA)19.5
Decibel Rating High (dBA)47
Number Of Speeds5 (Variable)
OscillationYes
Lineset Fitting TypeFlare
Liquid Line Size1/4
Suction Line Size3/8
Blower Motor Speeds441.4/323.7/229.6/176.6/147.2
Blower Motor RPM1100/850/700
Wifi CompatibilityYes
Remote Control IncludedYes
UL ListedYes
Csa ListedYes
ETL ListedYes
Net Depth (in)9.09
Net Height (in)11.81
Net Width (in)33.74
Net Weight (lb)22.93

Indoor Unit (2 included) — O-18-HP-WMAH-230C-O

Tonnage1.5
Voltage (V)230
Max Fuse Breaker (A)15
Min Circuit Ampacity (A)3
Mount TypeWall
ColorWhite
Max Coverage AreaUp to 800
Refrigerant TypeR-454B
Decibel Rating (dBA)49.5/45/38/31.5/19.5
Decibel Rating Low (dBA)19.5
Decibel Rating High (dBA)49.5
Number Of Speeds5 (Variable)
OscillationYes
Lineset Fitting TypeFlare
Liquid Line Size1/4
Suction Line Size1/2
Blower Motor Speeds635.7/500.3/359/294.3/294.3
Blower Motor RPM1190/994/896
Wifi CompatibilityYes
Remote Control IncludedYes
UL ListedYes
Csa ListedYes
ETL ListedYes
Net Depth (in)9.69
Net Height (in)12.64
Net Width (in)40.31
Net Weight (lb)27.34

Compatibility & Installation

  • Line set: Flare connections — 6 x 1/4" liquid × 4 x 3/8 + 2 x 1/2" suction; maximum line length per manual. Line set not included.
  • Electrical: 208/230V single-phase, 60 Hz.
  • Professional installation: Requires installation by a licensed HVAC technician (evacuation and charge verification with gauges). R-454B is an A2L refrigerant — follow current codes.

Documents

Comfort for the people who live there

The right equipment keeps the rooms you live in steady and quiet, whether it's dinner in the kitchen or a weekend project in the garage.

Specifications

Extra Information

Find your comfort-ready size with confidence

Get a fast, learning-friendly estimate for tons and BTUs, then review it with a Pro to dial in the perfect fit for your home.

Brand:
MRCOOL
Width:
37.48 (in)
Height:
52.48 (in)
Depth:
16.34 (in)
Weight:
299.61 LBS
Prop 65 Warning:
Yes
Safety Information:
⚠ WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Product Category:
Ductless Mini Split Multi Zone
Series:
Olympus 4th Gen
System Type:
Heat Pump
Zones:
3
Zone Configuration:
12k + 18k + 18k
Configuration:
Wall Mount
Mount Type:
Wall Mount
Capacity (Tons):
4
Cooling Capacity (BTU):
48,000
SEER2:
20+ SEER2
EER2:
12 EER2
HSPF2:
10+ HSPF2
AHRI Certified:
Yes
AHRI Reference Number:
217291701
Refrigerant Type:
R-454B
Compressor Type:
Inverter
Connection Type:
Flared
Voltage / Phase:
208/230V 1-Phase
Electrical Phase:
1-Phase
Outdoor Unit MULTI6-48HP230C-O - UPC:
840255587815
Indoor Unit O-12-HP-WMAH-230C-O - UPC:
840255587716
Indoor Unit O-18-HP-WMAH-230C-O - UPC:
840255587723
Wi-Fi Control:
Built-In
Indoor Unit Combination:
12K + 18K + 18K
Please Note: To validate the manufacturer's warranty, equipment must be installed by a qualified licensed professional in accordance with local codes and the manufacturer's installation requirements.

2023 Energy Standards

Department of Energy (DOE) State Regulations – Effective 2023

Click the link below to view the energy standards applicable to your region.

DOE State Standards Document

Department of Energy (DOE) State Regulations – Effective 2023

Click the link below to view the energy standards applicable to your region.

DOE State Standards Document

Documents & warranty
Warranty
7 Years Compressor & 5 Years Parts
Videos1 videos
Olympus Series Mini-Split Heat Pump Deep Dive
Frequently asked questions
How many zones does the support?
It supports 3 zone(s).
What size is the ?
The is a 4 ton unit.
How much cooling does the provide?
It is rated for 48,000 BTU of cooling.
What is the SEER2 rating of the ?
The is rated at 20+ SEER2 SEER2.
What is the HSPF2 heating efficiency of the ?
It is rated at 10+ HSPF2 HSPF2.
Is the AHRI certified?
Yes. The AHRI reference number is 217291701.
What refrigerant does the use?
It uses R-454B refrigerant.
What power supply does the need?
It requires 208/230V 1-Phase power.
Can the be controlled over Wi-Fi?
Built-In.
What warranty comes with the OLY-MZ48-3Z-12-18-18?
7 Years Compressor & 5 Years Parts
Who makes the OLY-MZ48-3Z-12-18-18?
The OLY-MZ48-3Z-12-18-18 is made by MRCOOL.
