Description

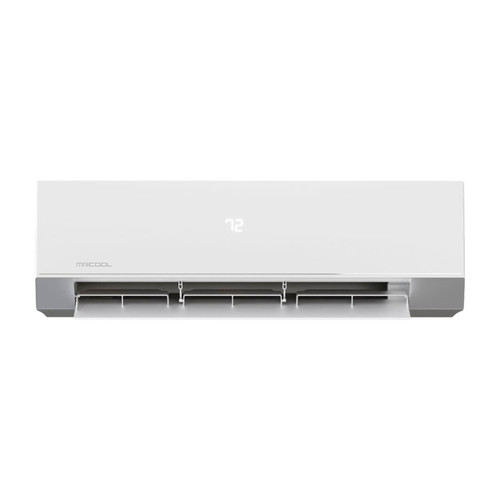

The MRCOOL Olympus 4th Gen O-24-HP-WMAH-230C-O is a 24,000 BTU (2-ton) wall mounted indoor unit (air handler) for MRCOOL Olympus 4th Gen single-zone and multi-zone ductless systems using R-454B refrigerant.
Stay comfortable all year long with the MRCOOL® OLYMPUS ESTAR® 24k Series air handler, a reliable solution for both heating and cooling. Designed to efficiently serve areas up to 1050 square feet, it’s an excellent fit for large rooms, offices, garages, and more. Its compact design also makes for an easy, straightforward installation.With built-in Wi Fi capabilities and the MRCOOL® Smart HVAC app, you can control the system from your smartphone or tablet anytime, anywhere.
Prefer a hands on approach? Use the included remote control for quick and simple access to your comfort settings.Built for high efficiency, the unit features a SEER2 23, EER2 14, and HSPF2 11.7, helping you save on energy costs without compromising performance.
Multiple indoor fan speed options and whisper quiet operation at just 51.5 dB ensure a peaceful and customized climate experience.The system now uses R 454B refrigerant, an environmentally friendly choice that supports greener living while delivering the performance you expect.You’ll also enjoy versatile control options, including compatibility with Amazon Alexa and Google Assistant for voice activated comfort, in addition to app and remote access.Backed by an industry leading warranty including a 7 year compressor warranty and a 5 year parts warranty, the MRCOOL® OLYMPUS ESTAR® 24k Series air handler offers advanced technology, dependable performance, and year round climate control you can count on.
Key Features
- Variable fan speeds: 5 (Variable) fan speeds for quiet operation.
- Quiet: As low as 16 dBA.
- Remote control: Wireless remote included.
- Coverage: Up to 1050 sq ft.
Product Specifications
| Brand | MRCOOL |
|---|---|
| Model | O-24-HP-WMAH-230C-O |
| Series | Olympus 4th Gen |
| Tonnage | 2 |
| Voltage (V) | 230 |
| Max Fuse Breaker (A) | 15 |
| Min Circuit Ampacity (A) | 3 |
| Mount Type | Wall |
| Color | White |
| Max Coverage Area | Up to 1050 |
| Refrigerant Type | R-454B |
| Decibel Rating (dBA) | 54.5/43.5/38.5/27/16 |
| Decibel Rating Low (dBA) | 16 |
| Decibel Rating High (dBA) | 54.5 |
| Number Of Speeds | 5 (Variable) |
| Oscillation | Yes |
| Lineset Fitting Type | Flare |
| Liquid Line Size | 3/8 |
| Suction Line Size | 5/8 |
| Blower Motor Speeds | 812.3/618/412/317.8/317.8 |
| Blower Motor RPM | 1000/850/630 |
| Wifi Compatibility | Yes |
| UL Listed | Yes |
| Csa Listed | Yes |
| ETL Listed | Yes |
| Base Warranty | 5-Year Parts |
| Base Parts Warranty | 5-Year |
| Base Remote Warranty | 5 Year |
| Net Depth (in) | 11.02 |
| Net Height (in) | 14.61 |
| Net Width (in) | 47.13 |
| Net Weight (lb) | 43.65 |
Compatibility & Installation
Matched with: Olympus 24k 4th Gen E Star® Condenser - 230v Olympus 27k 4th Gen Multi Zone 4 Condenser - 230v Olympus 36k 4th Gen Multi Zone 5 Condenser - 230v Olympus 48k 4th Gen Multi Zone 6 Condenser - 230v Mini Split Line Sets 3/8"-5/8" Line Guards MRCOOL Mini-StatsMB4 40 - MRCOOL Condenser Wall Mounting kit 24k to 3
- Line set: Flare connections — 3/8" liquid × 5/8" suction; maximum line length per manual. Line set not included.
- Electrical: 208/230V single-phase, 60 Hz.
- Professional installation: Requires installation by a licensed HVAC technician (evacuation and charge verification with gauges). R-454B is an A2L refrigerant — follow current codes.
Documents
- MRCOOL Olympus E Star Brochure And Specifications
- MRCOOL Olympus E Star Installation And Owner's Manual
- MRCOOL Olympus Series Limited Warranty
- MRCOOL Olympus Multi-Zone Brochure And Specifications
- MRCOOL Olympus Ceiling Cassette Installation And Owner's Manual
- MRCOOL Olympus Mid-Static Ducted Air Handler Installation Manual
